What Is a Glazed Tile?
A glazed tile (also known as Spanish tile, S tile, Roman tile, or curved tile) is a decorative roofing tile with a distinctive wave‑like or S‑shaped profile. Unlike simple corrugated sheets, glazed tiles are designed to mimic traditional clay or concrete roof tiles while offering the strength, light weight, and cost‑effectiveness of steel.

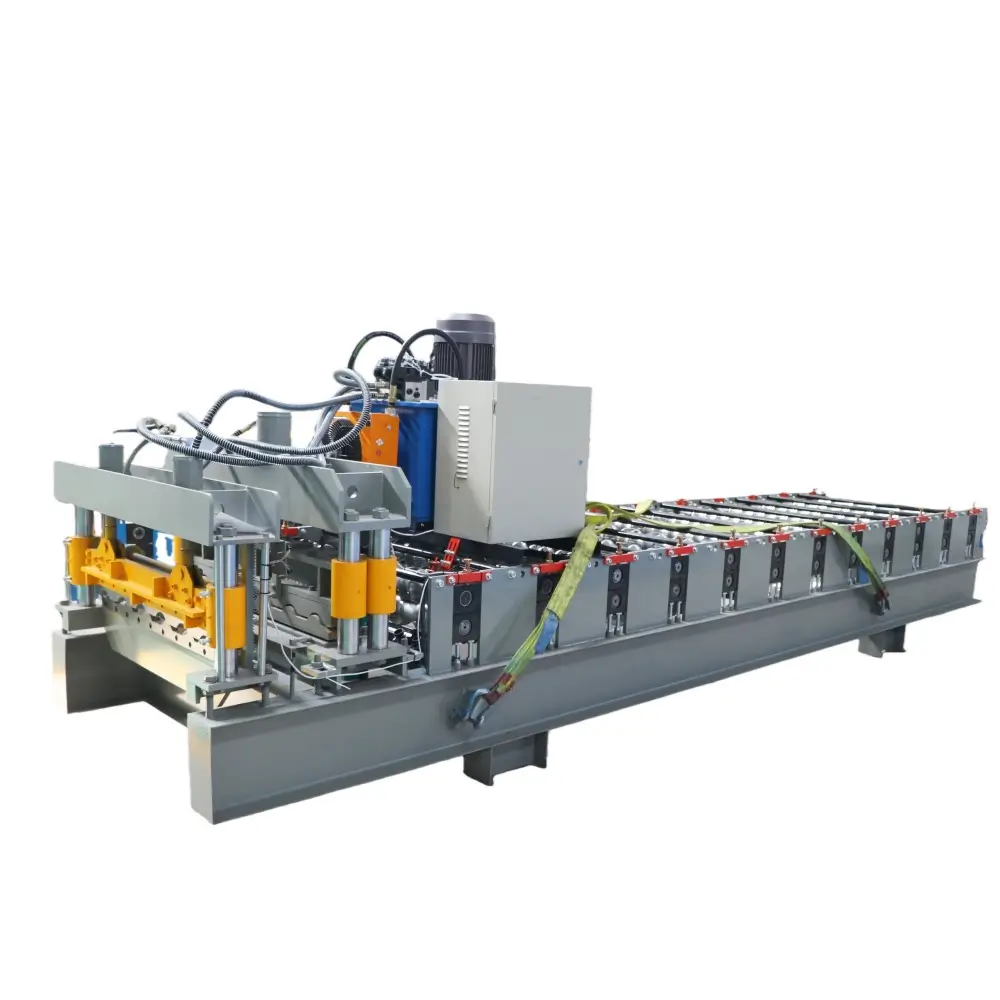

Our company's Glazed Tile Roll Forming Machine is primarily used to produce products featuring this specific panel profile.
Glazed roof tile roll forming machine is a specialized type of cold roll forming equipment designed to produce metal roofing sheets from materials like galvanized steel, color-coated steel, or aluminum coils. Instead of flat profiles, these machines create a distinctive, multi-dimensional, and curved profile that resembles traditional ceramic or clay tiles.
Technical Specifications – Glazed Tile Roll Forming Machine

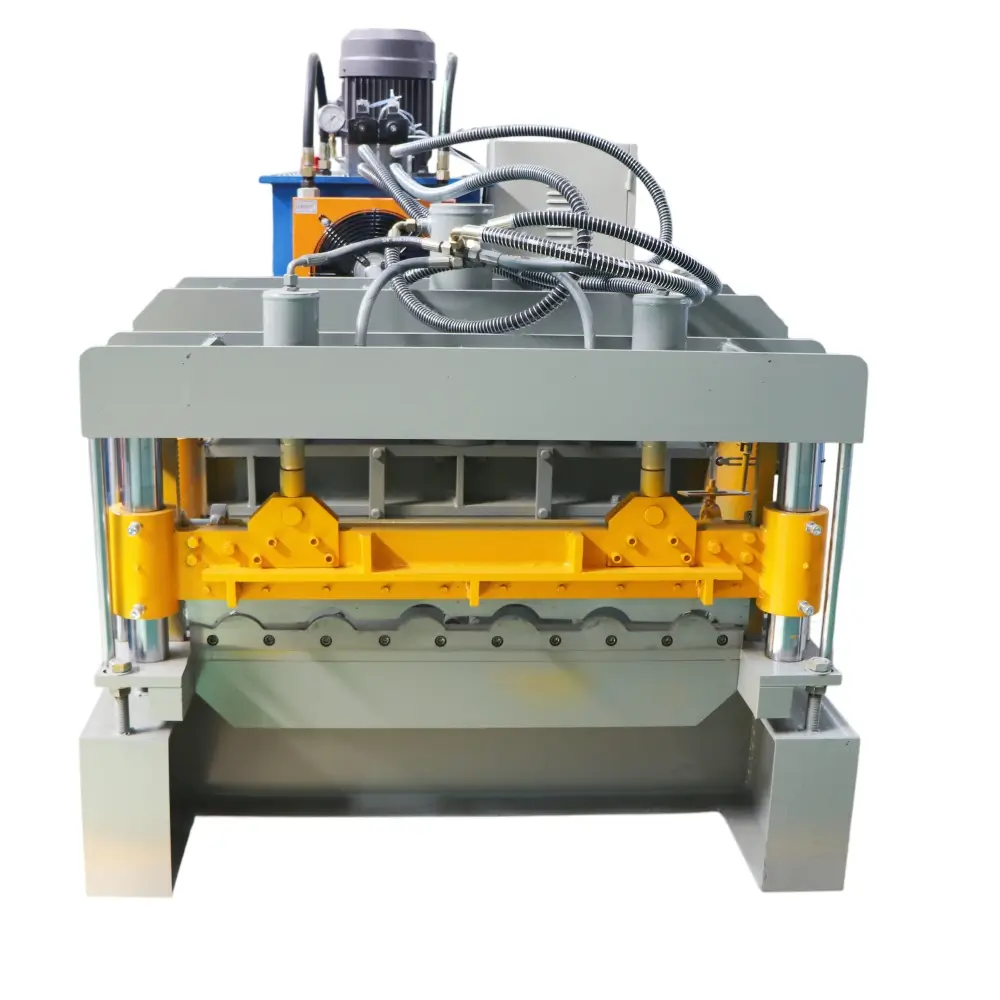

| Parameter | Typical Range / Option |
|---|---|
| Profile produced | Glazed tile / Spanish tile / S tile / Roman tile |
| Effective coverage | 1050mm – 1150mm (customizable) |
| Wave pitch | 150mm – 200mm |
| Wave height | 25mm – 35mm |
| Material thickness | 0.3mm – 0.8mm (galvanized steel, PPGI, aluminum) |
| Material width (coil) | 1100mm – 1250mm (based on coverage) |
| Forming speed | 8 – 15 m/min (or 100 – 300 finished tiles per hour) |
| Forming stations | 16 – 24 stations |
| Main shaft diameter | φ75mm – φ80mm (45# forged steel) |
| Roller material | 45# steel + hard chrome plating (HRC58‑62) – GCr15 optional |
| Cutting type | Hydraulic stationary cutting (post‑cut) |
| Cutting tolerance | ±2.0 mm |
| Control system | PLC + touch screen (Siemens / Delta) |
| Main motor power | 4kW – 7.5kW |
| Hydraulic motor power | 3kW – 4kW |
| Power supply | 380V/50Hz, 220V/60Hz, 415V/50Hz – customizable |
| Machine dimensions | 7,000 – 9,000 mm (L) × 1,500 mm (W) × 1,500 mm (H) |
| Machine weight | 5,000 – 8,000 kg |
Optional equipment:
- Hydraulic Decoiler – Available in 5-ton and 10-ton capacities.

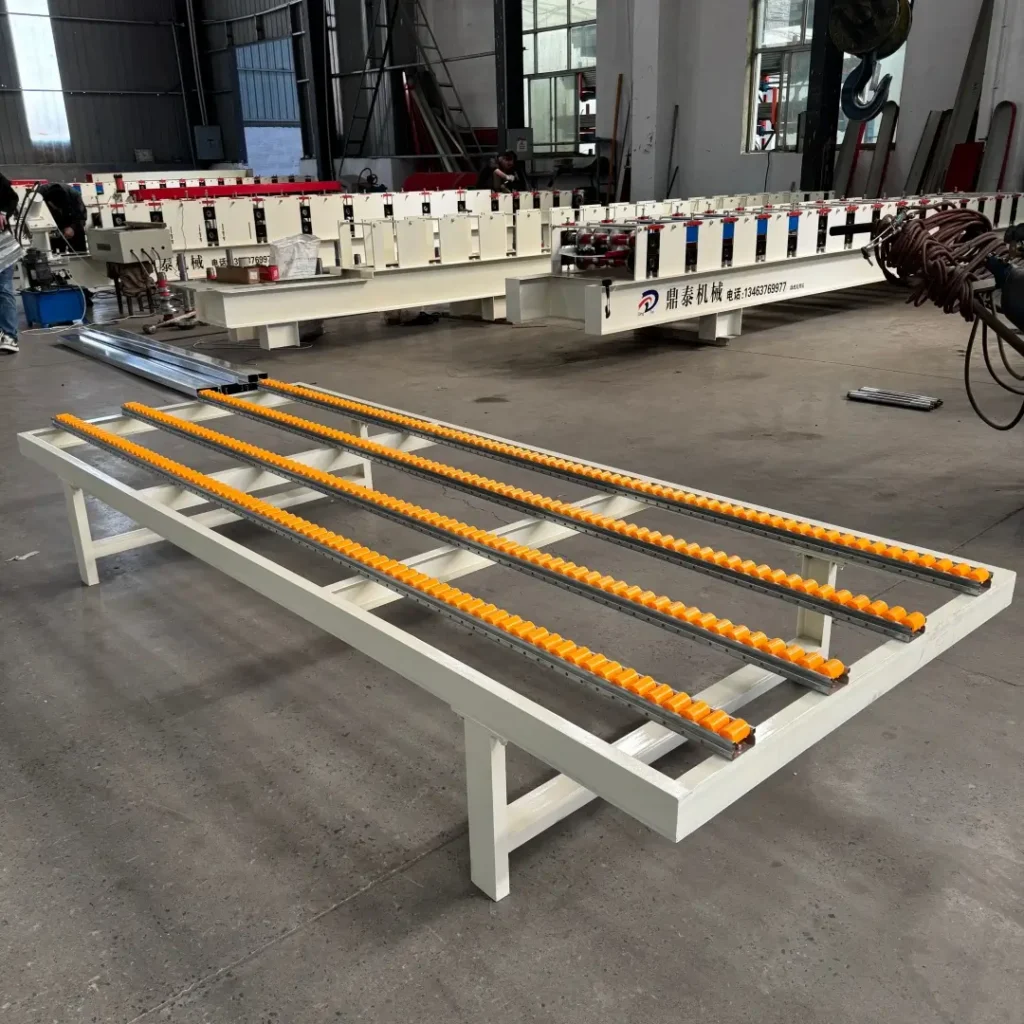

- Automatic Stacking System with Tile Counting – Automatically counts and stacks finished tiles according to the preset quantity.
- Pre-Painted Coil Feeding – Standard configuration for feeding pre-painted steel coils.
- Post-Forming Glazing / Painting Line – Optional online system for applying a gloss coating to finished panels.
- Dual-Layer Production for Corrugated and Flat Sheets – Supports production of corrugated sheets and flat sheets in a dual-layer configuration.
- Mobile Casters for Easy Relocation – Optional wheels for convenient machine movement and repositioning.

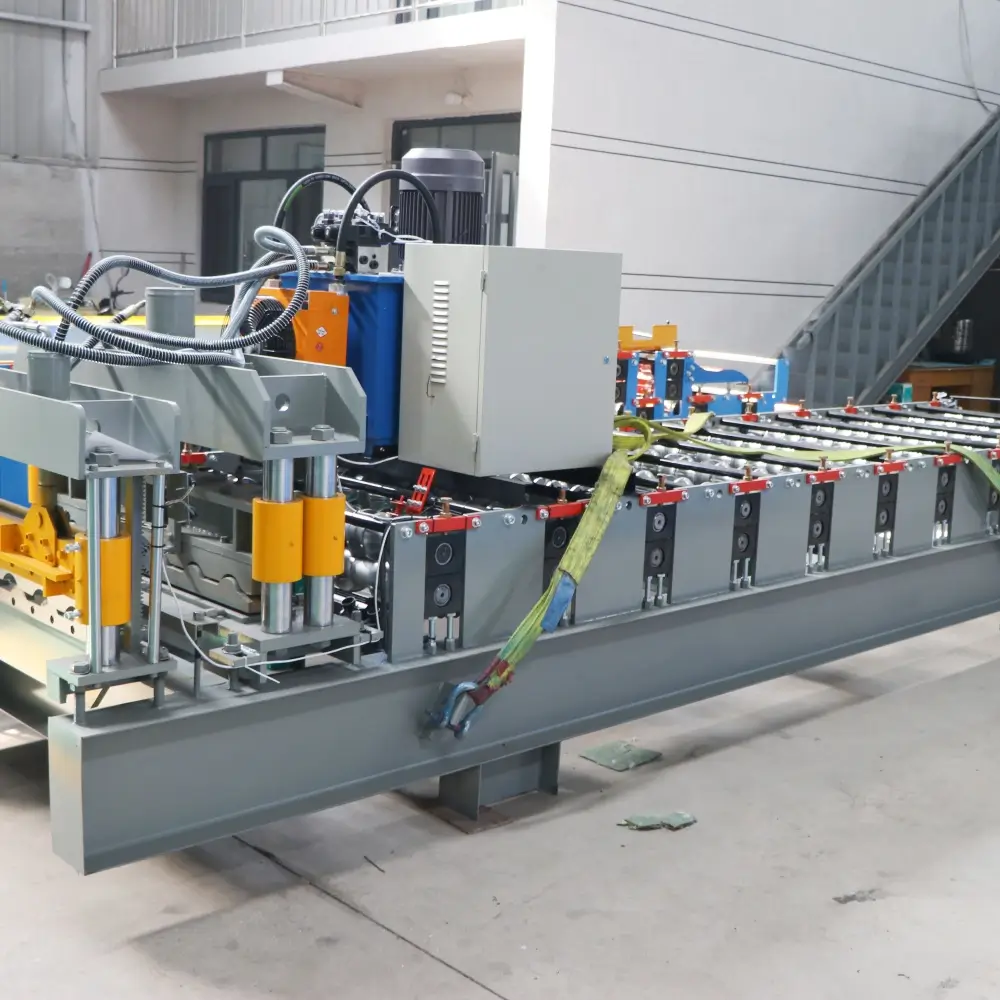

Production Line Flow
Decoiler → Leveling & Feeding → Roll Forming (16–24 stations) → PLC Length Setting → Hydraulic Cutting → Output Table → (Optional Automatic Stacker)

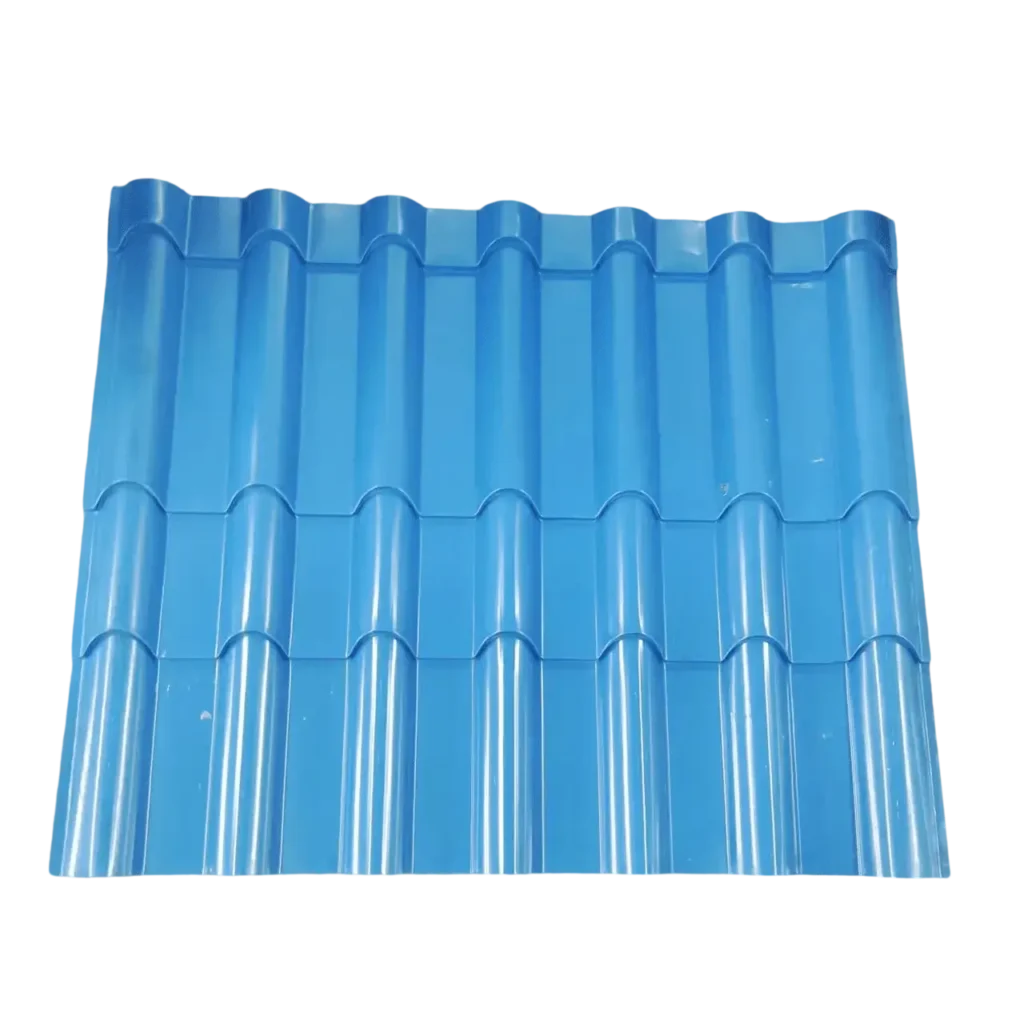

Finished Glazed Tile Gallery
- rofile shape: S‑curve / Spanish / Roman wave
- Effective coverage: 1050mm – 1150mm (typical)
- Wave pitch: Approximately 150mm – 200mm
- Appearance: Resembles traditional clay roof tiles but made from steel
- Coating: Pre‑painted or post‑glazed with high‑gloss finish
FAQ
What materials can I use?
| Pre‑painted galvanized steel (PPGI) is the most common. Aluminum and Galvalume® also work. Coil width typically 1100–1250mm, thickness 0.3–0.8mm. |
Do I need a separate glazing line?
No. Most customers use pre‑painted (PPGI) coils that already have the glossy finish. The roll forming machine only shapes the tile. A separate glazing line is optional for post‑coating.
What power supply is required?
| We customize to your local voltage – tell us your requirement (380V/50Hz, 220V/60Hz, 480V/60Hz, etc.). |
