IBR Roof Panel Roll Forming Machine
686mm Coverage, 15–30m/min, PLC Automatic
- CE / ISO9001
- 0.27–0.8mm thickness
- 686mm effective width
- 15+ years experience
Tel:0086 15194755533
Email:dtrollformingmachine@gmail.com
What is IBR Profile?
Our IBR Roof Panel Roll Forming Machine is designed to manufacture high-quality IBR profiles from galvanized steel, PPGI, and other coil materials.IBR stands for Inverted Box Rib, a square-fluted roofing and cladding profile with an effective coverage width of 686mm. Originally introduced in South Africa in 1958, IBR has become one of the most widely used metal roofing profiles in South Africa, Zimbabwe, Nigeria, and other African countries. It is commonly applied for commercial buildings, industrial facilities, warehouses, and residential roofing and wall cladding systems.
Our company’s IBR Roof Roll Forming Machine is primarily used to produce this type of sheet material.
IBR sheets have a square fluted (trapezoidal) design with an effective coverage width of 686mm, a profile height of ~36mm, and stiffening ribs that improve strength and reduce oil-canning (surface distortion).
IBR Roll Forming Machine Technical Specifications
| Parameter | Specification |
|---|---|
| Suitable Materials | Galvanized Steel, PPGI, GL, Aluminum |
| Material Thickness | 0.27–0.80 mm (up to 1.00 mm, customized) |
| Coil Feeding Width | Approx. 925 mm |
| Effective Cover Width | 686 mm standard; 600–1100 mm customizable |
| Profile Height | Approx. 36 mm |
| Forming Speed | 10–30 m/min |
| Forming Stations | 16–22 stations, depending on profile |
| Main Shaft Diameter | Ø75 or Ø80 mm, 45# forged steel |
| Roller Material | 45# Forged Steel with Hard Chrome Plating |
| Cutting type | Hydraulic Cutting |
| Cutting Method | ±1.5mm |
| Cutting blade material | Cr12Mov, HRC58‑62 |
| Control System | PLC + Touchscreen (Siemens / Delta / Mitsubishi) |
| Main Motor Power | 4 – 11 kW (based on model) |
| Hydraulic Motor power | 3 – 4 kW |
| Power supply | 380V/50Hz (customizable to your country: 220V/60Hz, 415V/50Hz, etc.) |
| Machine Dimensions | 7–10m (L) × 1.5–2m (W) |
| Machine Weight | 5 – 8 tons |
Optional equipment:
- Hydraulic decoiler (5t/10t)
- Automatic stacker (count by pieces)
- Film covering device
- Pre‑punching / embossing unit
- Double‑layer roll former (two profiles in one machine)

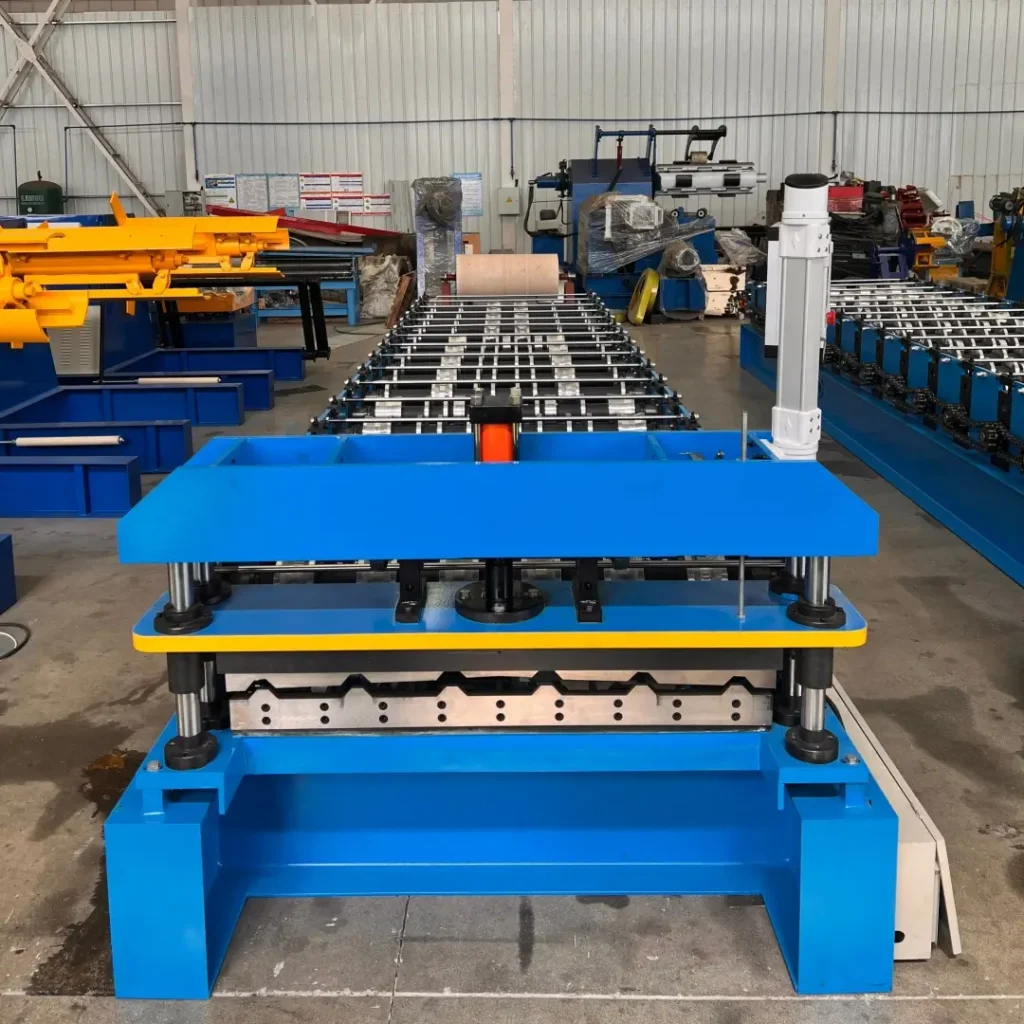

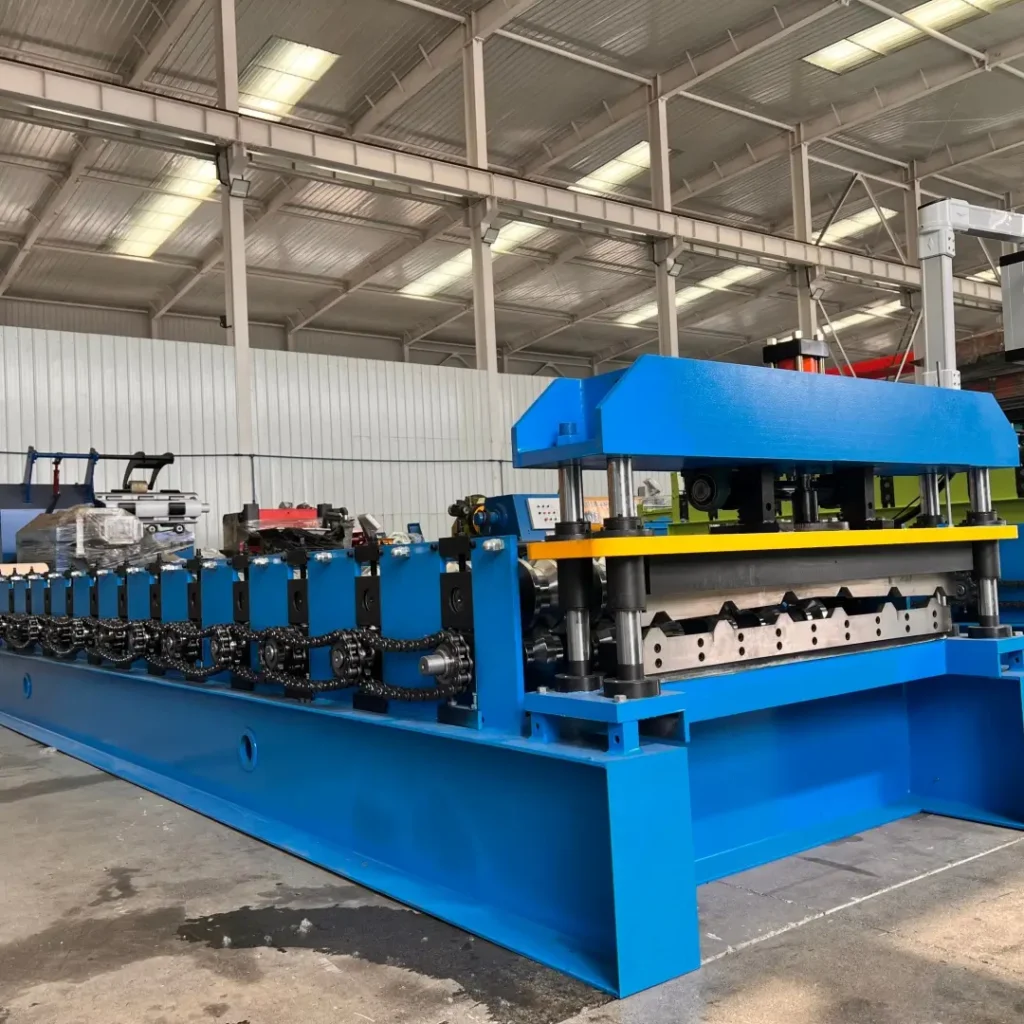

How the IBR Roll Forming Line Works
Decoiler → Leveling & Feeding → Roll Forming → PLC Length Setting → Hydraulic Cutting → Output Table → (Optional Stacker)
The whole process is fully automatic. One operator can set length and quantity on the touch screen, and the machine cuts automatically at the exact length. Speed up to 30m/min.

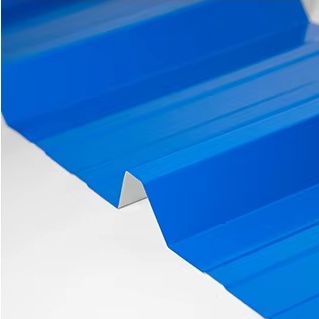

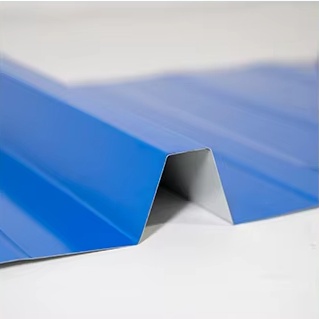

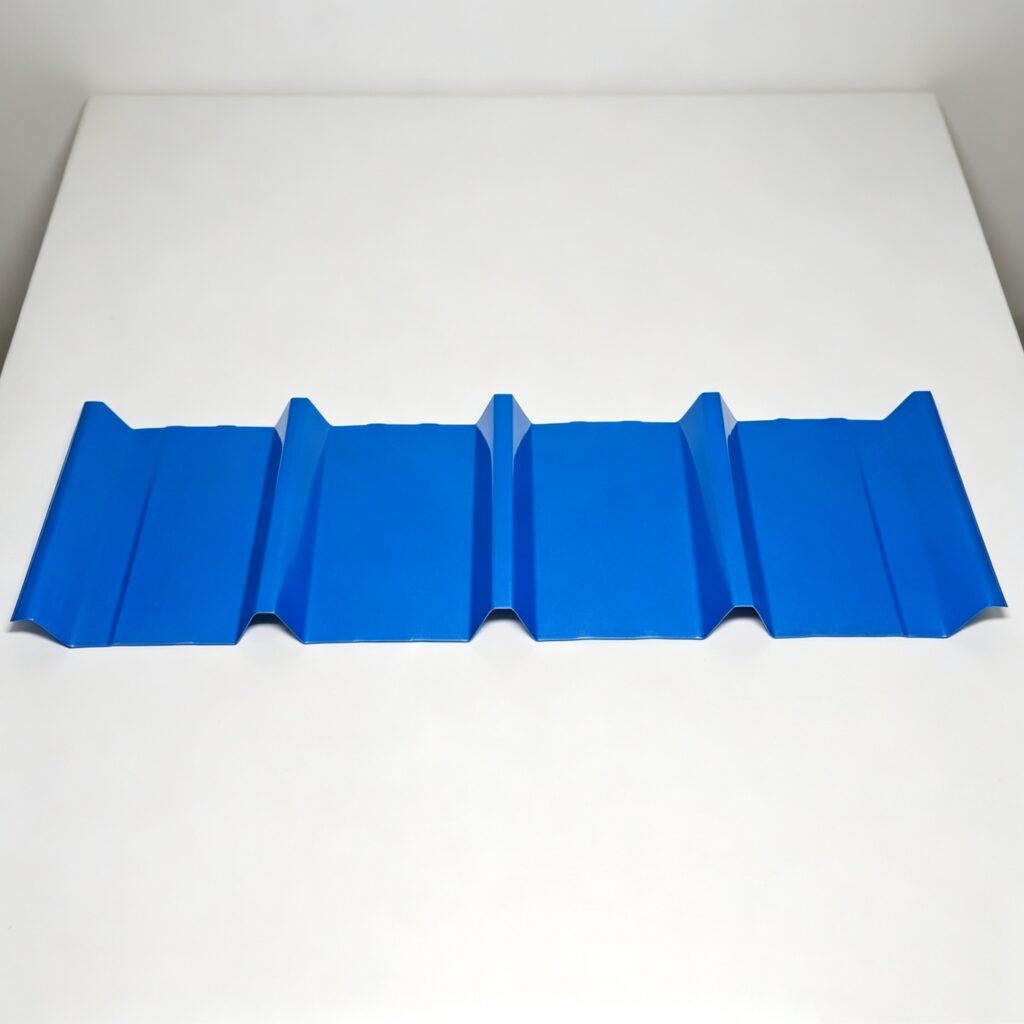

Finished IBR Profiles – Real Samples & Applications
Key profile characteristics:
- Effective coverage: 686mm
- Total width: ~742mm
Material feeding width: ~925mm - Profile height: ~36mm
- Minimum roof slope: 5° (better drainage than traditional corrugated sheets)
- Stiffening ribs in the wide pan to reduce oil‑canning
Why Choose Our IBR Roof Roll Forming Machine?
Precision Rollers for Long Service Life
The forming rollers are made from 45# forged steel, CNC-machined and finished with hard chrome plating. With a hardness of HRC 58–62, the rollers offer excellent wear resistance, high forming precision, and a long service life.
Heavy-Duty Machine Frame
The machine is built with a Q345 high-strength steel welded frame and equipped with Ø75 mm precision shafts. The robust construction provides excellent rigidity and stability, even during high-speed continuous production.
Automatic PLC Control System
The machine is equipped with a Siemens or Delta PLC control system and touchscreen interface. Operators can easily set the required production length and quantity, while automatic control simplifies operation and improves production efficiency.
High-Precision Hydraulic Cutting
The cutting system uses hardened Cr12MoV blades to provide clean and precise cutting with minimal burrs. The cutting tolerance can reach ±1.5 mm, helping ensure consistent finished product dimensions.
Flexible Power Supply Options
The machine can be customized to match the electrical standards of different countries and regions, supporting common configurations such as 220V, 380V, and 415V, 50Hz or 60Hz.
Complete After-Sales Support
We provide a 12-month warranty, lifetime technical support, and a recommended spare parts list to help customers maintain reliable machine performance and minimize downtime.
Multi-Profile Production
The same main machine can be configured to produce different profiles by changing the roller tooling sets, providing greater production flexibility and helping reduce equipment investment.
Direct Factory Manufacturing
As a direct roll forming machine manufacturer, we control the production process from component selection and machining to assembly and testing. This allows us to provide consistent machine quality, direct technical support, and responsive after-sales service.
FAQ – IBR Roof making Machine
What is the MOQ?
1 set. Sample testing available before shipment.
Can you produce my specific profile?
Yes. Send us your drawing or a sample panel. We design rollers and can make a sample for you. laborum.
What is the warranty?
12 months for whole machine, lifetime remote technical support.
How long does it take to change profile?
Manual roller change takes about 2 hours. Quick‑change system available (15 minutes).
Can you make a double‑layer machine?
Yes. We offer double‑layer roll formers that produce two different profiles (e.g. IBR + corrugated).
