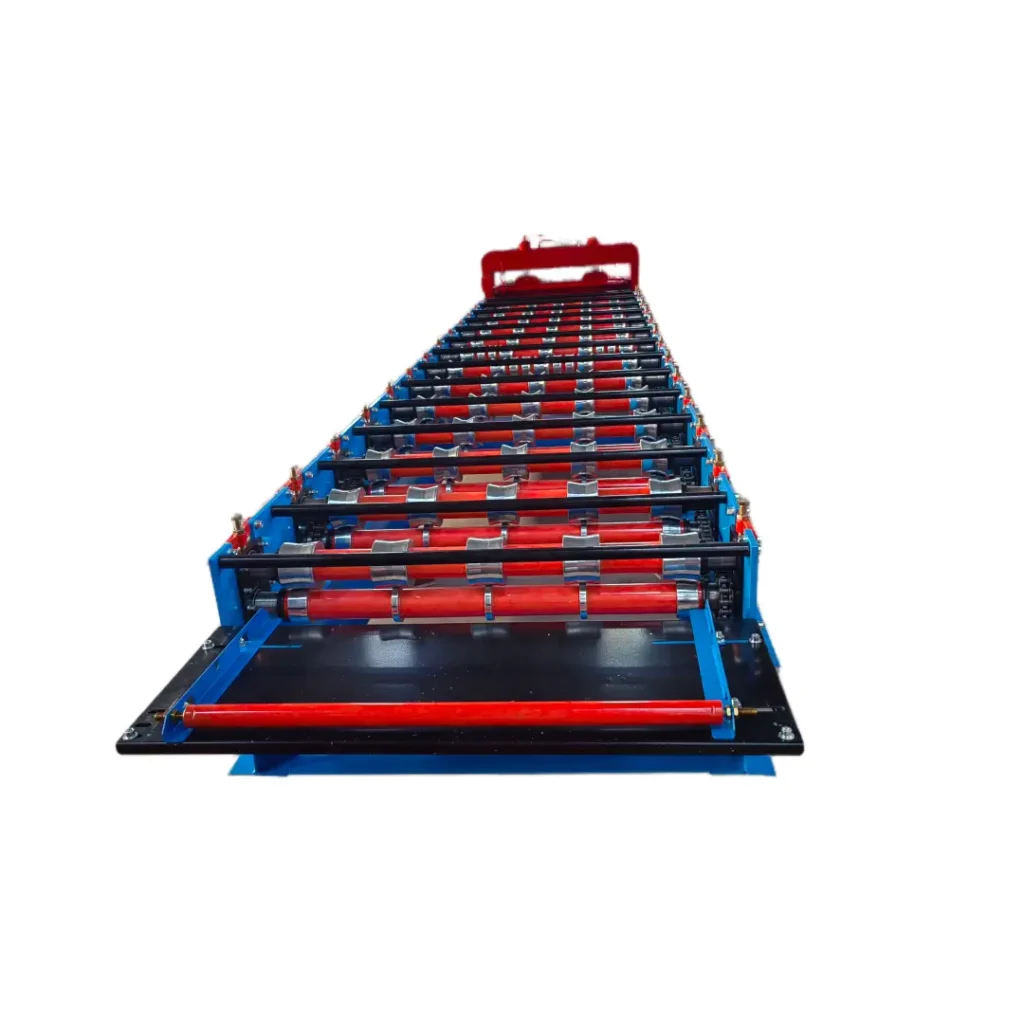

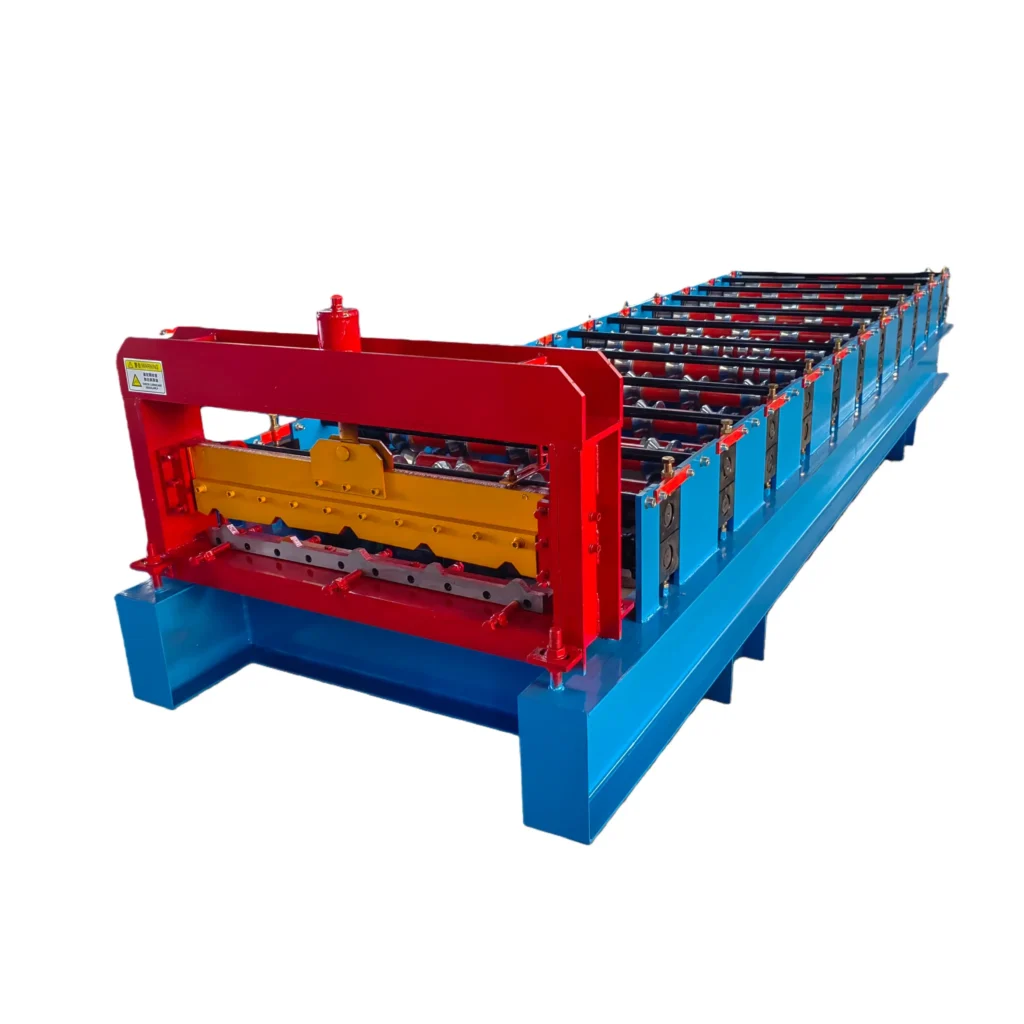

R Panel Roll Forming Machine
36″ Coverage, 12″ Rib Spacing, 1¼″ Rib Height
- CE / ISO9001
- 26 gauge / 24 gauge / 22 gauge
- 36″ effective coverage
- Exported to USA, Canada & worldwide
Tel:0086 15194755533
Email:dtrollformingmachine@gmail.com
What Is an R Panel?
An R Panel (where “R” stands for “Ribbed”) is a multi-use, exposed fastener metal wall and roof panel that was originally designed for pre-engineered metal buildings. Since its inception, its use has expanded into commercial, industrial, agricultural, and even residential applications — particularly in the southwestern United States where it is widely used for barndominiums, shops, and residential metal roofing.
Our company's R Panel Roll Forming Machine is primarily used to produce products featuring this specific panel profile.
An R Panel Roll Forming Machine is an industrial machine that continuously produces R panels – one of the most popular exposed fastener metal roofing and siding profiles in North America, particularly for commercial, industrial, and post‑frame (pole barn) buildings.
The “R” stands for “Ribbed” , referring to the panel’s distinctive trapezoidal ribs. R panels were originally designed for pre‑engineered metal buildings (PEMB) but are now widely used for warehouses, agricultural structures, barndominiums, and even residential metal roofing.
Technical Specifications – R Panel Roll Forming Machine
| Parameter | Typical Range / Option |
|---|---|
| Profile produced | R Panel / PBR Panel (exposed fastener trapezoidal rib profile) |
| Rib height | 1¼″ (standard) |
| Rib spacing | 12″ on center |
| Panel coverage | 36 inches (effective) – from ~43″ feeding width |
| Feeding width (coil width) | ~43 inches (approx. 1090–1250 mm) |
| Material thickness (gauge) | 29ga / 26ga / 24ga / 22ga (0.3mm – 1.0mm) |
| Material type | Galvanized steel, Galvalume®, PPGI, aluminum |
| Forming speed | 10 – 30 m/min (up to 40 m/min for high-speed models) |
| Forming stations | 16 – 22 stations |
| Main shaft diameter | φ75mm – φ95mm (45# / GCr15 forged steel) |
| Roller material | 45# forged steel + hard chrome plating (HRC58‑62) – GCr15 available |
| Cutting type | Hydraulic servo tracking cutting |
| Cutting tolerance | ±1.5 mm |
| Cutting blade material | Cr12Mov / SKD11 (HRC58‑62) |
| Control system | PLC + touch screen (Siemens / Delta / Mitsubishi) |
| Main motor power | 5.5kW – 11kW |
| Hydraulic motor power | 3kW – 5.5kW |
| Power supply | 380V/50Hz, 480V/60Hz, 220V/60Hz – customizable to USA/Canada |
| Machine dimensions | ~7,000 – 11,000 mm (L) × 1,500 mm (W) × 1,500 mm (H) |
| Machine weight | 4,500 – 10,000 kg |
| Structure | 350H beams welded, precision ground frame |
Optional equipment:
- 手动/液压开卷机（5吨/10吨）
- 自动堆垛机（最少纸张计数）
- PBR（檩条负载栏）测量选项集成到主机中
- 预切或后切系统
- （双层）配置 – R 面板位于一层，其他型材位于一层
- 压花/打标装置
- 带紧急停止装置的安全面罩
How the R Panel Roll Forming Line Works
Decoiler → Leveling & Feeding → Roll Forming (16–22 stations) → PBR Forming (optional) → PLC Length Setting → Hydraulic Servo Cutting → Output Table → (Optional Stacker)

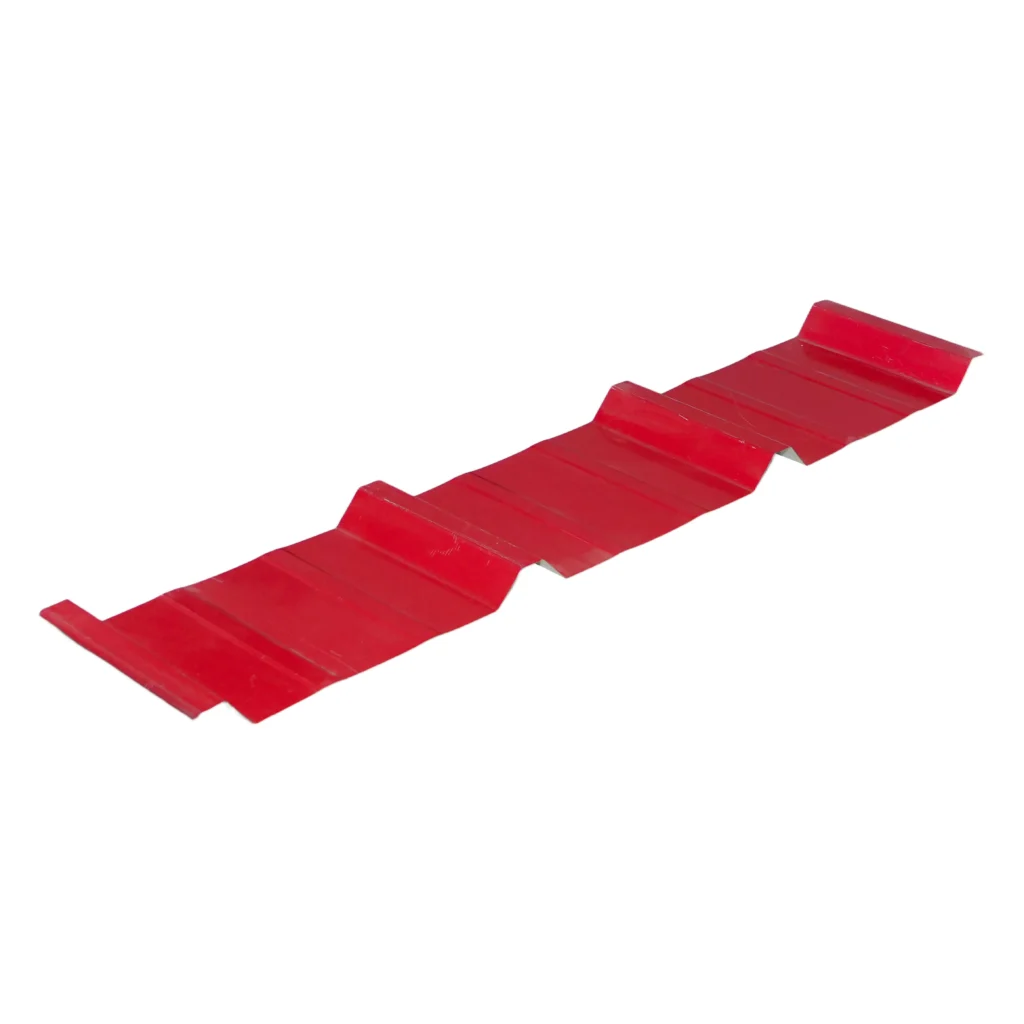

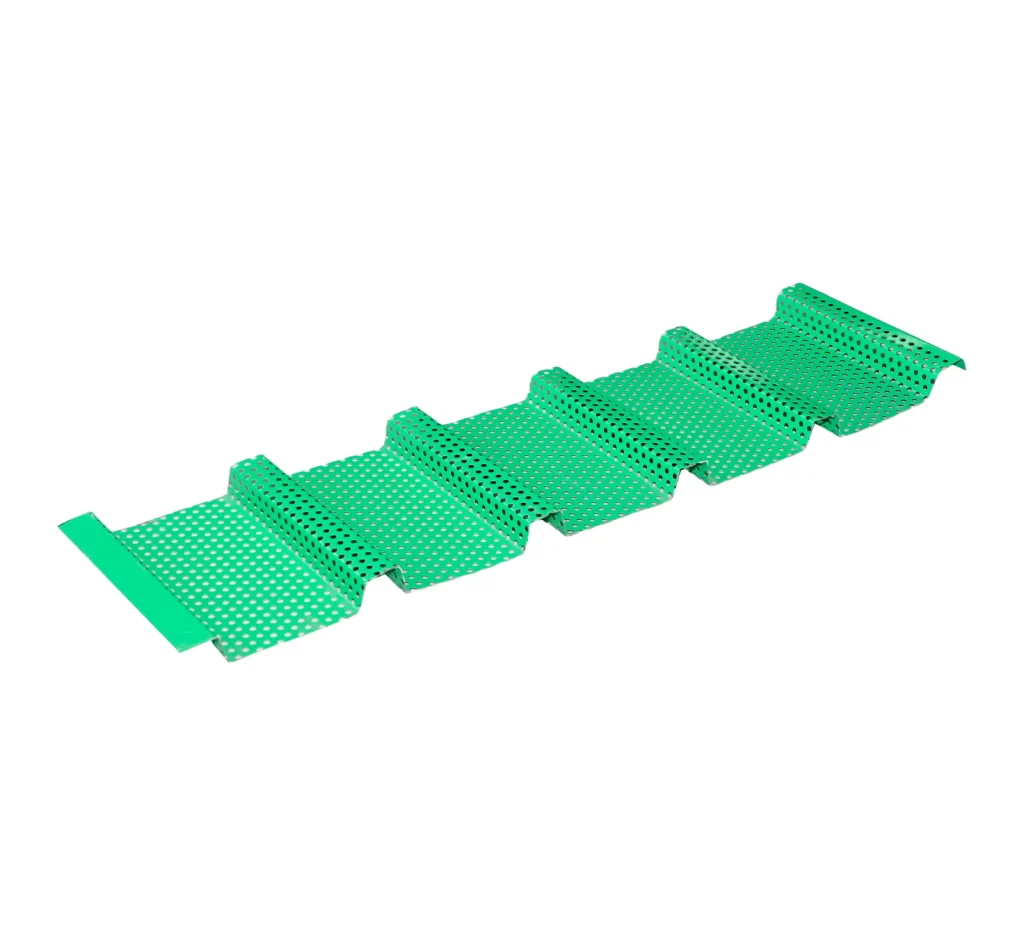

成品 R 面板画廊
- Rib height: 1¼″ (1.25 inches) tall major ribs for superior structural strength
- Rib spacing: 12 inches on center (major ribs spaced 12″ apart)
- Panel coverage: 36 inches effective coverage — fewer panels per roof, faster installation
- Material thickness: Available in 29 gauge, 26 gauge, 24 gauge, and 22 gauge
Why Choose Our R Panel making Machine?
🔧 Precision R Panel Tooling – 45# forged steel / GCr15 rollers with hard chrome plating, CNC machined to exact 1¼″ rib profile with 12″ spacing and optional PBR leg. HRC58‑62 hardness for long production life.
⚙️ Heavy‑Duty Frame – 350H high‑strength steel welded frame, φ75mm–φ95mm precision spindles. Stable operation at high speed (up to 30 m/min) with minimal vibration.
🎯 PLC Automatic Control – Siemens / Delta touch screen interface. One operator sets length, quantity, and batch production. ±1.5 mm cutting precision.
🔪 High‑Accuracy Cutting – Cr12Mov / SKD11 hardened blades with hydraulic servo tracking cut. Burr‑free, square cuts every time. Panels fit perfectly on site.
🏗️ PBR Integration – Purlin bearing rib formed inline as part of the main machine. No secondary operation needed. Ready for roof applications where contractors need extra support.
🌍 USA/Canada Ready – Customized to local power: 480V/60Hz, 220V/60Hz, 380V/50Hz. UL‑recognized components available. Plug‑and‑play installation.
🏭 Direct Factory Support – We manufacture, not trade. Factory pricing, direct quality control, fast technical support, no middlemen.
🔄 Multi‑Profile Options – Double‑layer configuration available. Produce R panel + another profile on one machine. Maximize your product range with one investment.
FAQ
What is the difference between R panel and PBR panel?
PBR stands for “purlin bearing rib.” The PBR version adds a bearing leg that rests on the roof purlin for extra support during installation. PBR panels are typically used for roofing; non-PBR R panels are more common for wall applications. PBR is considered the roof panel, while R panels are generally used for wall panels.
What is the difference between R panel and AG panel?
R panel has taller ribs (1¼″ vs. ¾″) and wider rib spacing (12″ vs. 9″), both with 36″ coverage. R panel is made in thicker gauges (26ga or heavier) and is stronger – used for commercial/industrial projects. AG panel is more affordable and lighter – used for agricultural/residential.
What material can I use?
Galvanized steel, Galvalume®, PPGI (pre‑painted), aluminum. Coil width approximately 43 inches.
